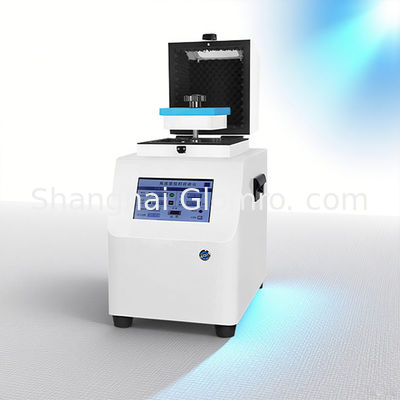

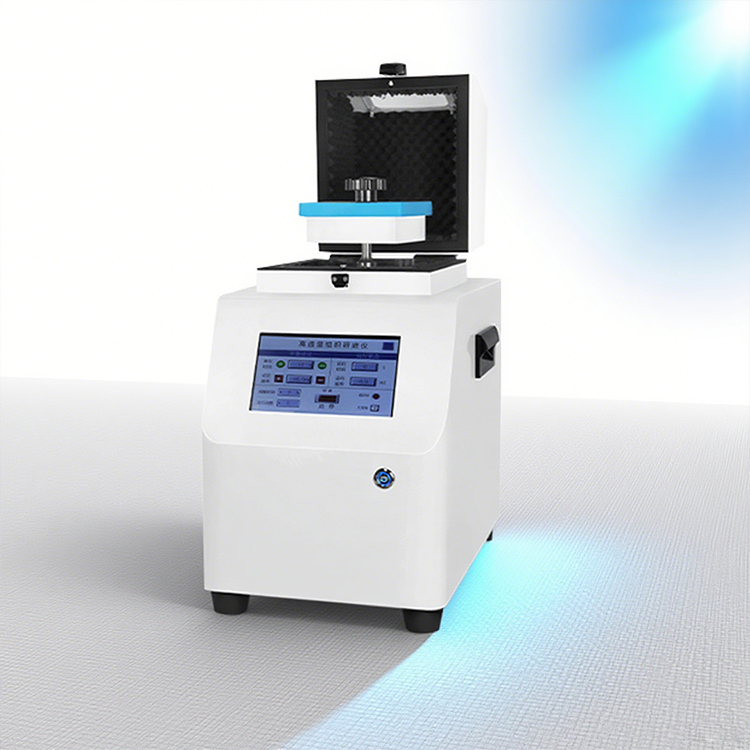

High-throughput tissue grinder
The high-throughput tissue grinder is a commonly used sample pretreatment equipment in laboratories, mainly used for quickly and efficiently grinding various tissue samples.
Working principle:
It usually adopts high-frequency vertical oscillation or horizontal circular radial vibration. Different grinding beads are selected to grind samples in centrifuge tubes. The samples in the grinding tubes collide with the grinding balls, and the resulting grinding shear force and impact force completely break the tissues, thereby effectively separating and extracting original DNA, RNA, etc.
| Model |
BXT-YM-24
(Standard type) |
BXT-YM-48
(Standard type) |
BXT-YM-96
(Standard type) |
BXT-YM-192
(Standard type) |
| Application |
Homogenization, grinding, cell disruption, homogenate preparation, material dispersion, sample mixing, oscillation |
| Display screen |
LED large screen with 7-inch touch screen, displaying working status |
| Sample size |
24*(0.2-0.5ml)
/24*2ml |
48*(0.2-0.5ml)
/48*2ml |
96*(0.2-0.5ml)
/48*2ml |
192*(0.2-0.5ml)
/96*2ml |
6*(5-10ml)/
2*50ml |
12*(5-10ml)/
2*50ml |
24*(5-10ml)/
4*50ml |
48*(5-10)ml
18*50ml |
| Homogeneous velocity |
0-70HZ |
| Grinding method |
Wet grinding, dry grinding and low-temperature grinding are all possible |
| Power supply |
220V/50HZ |
| Working hours |
Users can set the 0S-9999S by themselves |
| Discharge particle size |
<5um |
| Grinding ball diameter |
0.5-30mm |
| Grinding ball material |
Stainless steel, chrome steel, zirconia, tungsten carbide, quartz sand |
| Accelerate Decelerate |
Accelerate/Decelerate - Reach the speed within 2 seconds |
| Noise |
<60dB |
| Overall dimensions |
500*380*430mm |
| Model |
BXT-YM-24R
(Frozen type) |
BXT-YM-48R
(Frozen type) |
BXT-YM-96R
(Frozen type) |
BXT-YM-192R
(Frozen type) |
| Application |
Homogenization, grinding, cell disruption, homogenate preparation, material dispersion, sample mixing, oscillation |
| Display screen |
LED large screen with 7-inch touch screen, displaying working status |
| Sample size |
24*(0.2-0.5ml)
/24*2ml |
48*(0.2-0.5ml)
/48*2ml |
96*(0.2-0.5ml)
/48*2ml |
192*(0.2-0.5ml)
/96*2ml |
6*(5-10ml)
/2*50ml |
12*(5-10ml)
/2*50ml |
24*(5-10ml)
/4*50ml |
48*(5-10ml)
/18*50ml |
| Homogeneous velocity |
0-70HZ |
| Power |
220V/50HZ |
| Working hours |
Users can set the 0S-9999S by themselves |
| Discharge particle size |
<5um |
| Grinding ball diameter |
0.5-30mm |
| Grinding ball material |
Stainless steel, chrome steel, zirconia, tungsten carbide, quartz sand |
| Accelerate Decelerate |
Accelerate/Decelerate - Reach the speed within 2 seconds |
| Noise |
<60dB |
| Overall dimensions |
650*450*500mm |
