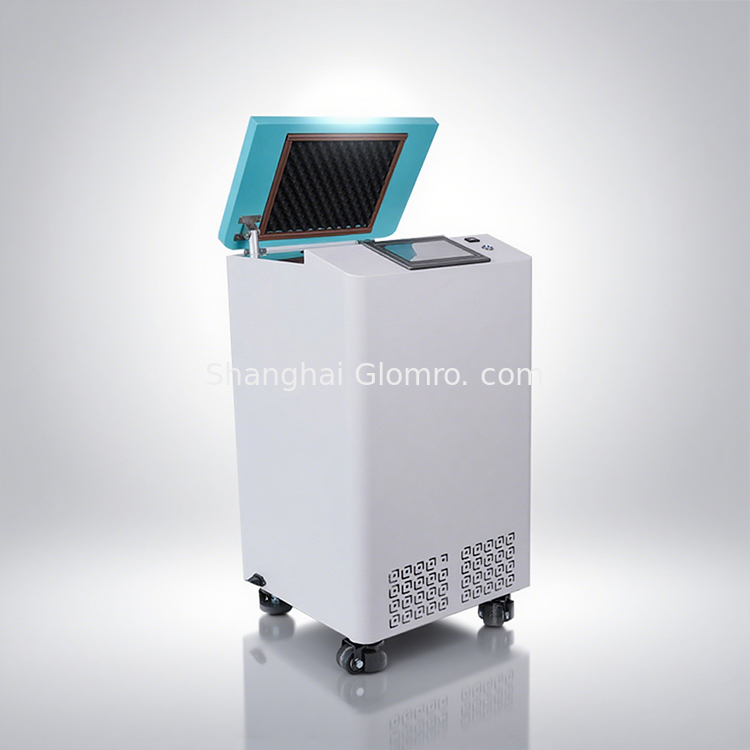

Vertical freezing grinder
The multi-channel vertical freezing grinding instrument is an efficient sample grinding device that can handle multiple samples simultaneously. It is widely used in both scientific research and industrial fields.
Working principle:
The multi-channel vertical freezing grinding instrument usually operates in a vertical vibration mode. It uses a motor to drive the grinding platform to perform high-frequency reciprocating movements in three dimensions (up and down, left and right). Under this motion, the grinding beads in the grinding jar exert high-frequency impacts, shearing, and friction on the sample, thereby grinding the sample into fine particles. At the same time, the instrument is equipped with a built-in refrigeration system, which can lower the sample temperature to a low level, causing the tough or heat-sensitive samples to become brittle and facilitating the grinding process.
Technical Specifications:
| Model | BXT-LD24S | BXT-LD48S | BXT-LD64S | BXT-LD96S |
| Sample size | Standardly equipped with 24-well 2ml PE adapter. Optional: 2ml×12, 5ml×12, 10ml×4, 25ml×2 grinding jars | Standardly equipped with 48-well 2ml PE adapter and 48-well alloy adapter. Optional: 2ml×48, 5ml×12, 10ml×4, 15ml×4, 25ml×4, 50ml×2 grinding jars | Standardly equipped with 64-well 2ml PE adapter. Optional: 2ml×64, 5ml×12, 10ml×4, 25ml×4, 50ml×2 grinding jars | Standardly equipped with 96-well 2ml PE adapter and 96-well alloy adapter. Optional: 2ml×96, 5ml×12, 10ml×4, 15ml×4, 25ml×4, 50ml×2 grinding jars |
| Display mode | 7-inch LED touch screen |
| Optional configuration mode | It can store ≥20 sets of experimental data. According to different experimental samples, modes for animal heart, spleen, lung, kidney, bone and hair can be set |
| Multiple programming sections | Multiple grinding formulas can be preset. According to the set experimental parameters, the process can continuously cycle through several preset parameters to reduce the interference from human factors |
| Opening method | Electric switch operating compartment cover |
| Feed size | According to the adapter adjustment |
| Output particle size | ﹣5μm |
Number of
grinding platforms | ＞2 |
| Grinding frequency | 0-70Hz |
| Grinding time | 0 seconds - 99 minutes, freely adjustable |
| Cooling range | Adjustable from 20℃ to -50℃ |
| Cooling time | It takes about 40 minutes to cool from 20℃ to -50℃ |
| Grinding stroke | 34mm(Vertical) |
| Grinding ball diameter | 0.1-30mm |
| Grinding ball material | Alloy steel, chromium steel, zirconium oxide, tungsten carbide, quartz sand, etc |
| Accelerate | Can reach a relatively high speed within 2 seconds |
| Noise level | ＜55db |
| Grinding method | Vertical bead-type grinding method: Dry grinding, wet grinding, and low-temperature grinding are all applicable |
| External dimensions | 450*450*720mm |
| Weight | 55kg |
Advantages
Applicable scenarios
- Life Sciences:Used for extracting nucleic acids and proteins, such as in the research of pest control in rice, it can rapidly lyse pest samples and extract the genome, providing high-quality samples for gene editing and sequencing.
- Agricultural Breeding:It can process a large number of plant samples in a short time, such as roots, stems, leaves, seeds, etc., accelerating the assessment of stress resistance and facilitating variety improvement.
- Environmental Monitoring:It can efficiently handle complex samples such as soil and water bodies. Through a fully enclosed design, it ensures the purity of soil microbial DNA extraction, providing reliable data for pollutant analysis.
- Materials Science:For hard materials such as coal and oil shale, through low-temperature brittleness and high-frequency impact, it achieves lossless grinding, improving detection accuracy
Product model classification
1.Vertical freezing grinder:Adjustable from 20 to -50℃
2.Liquid nitrogen freezing grinding instrument:The lowest temperature can reach -196℃
