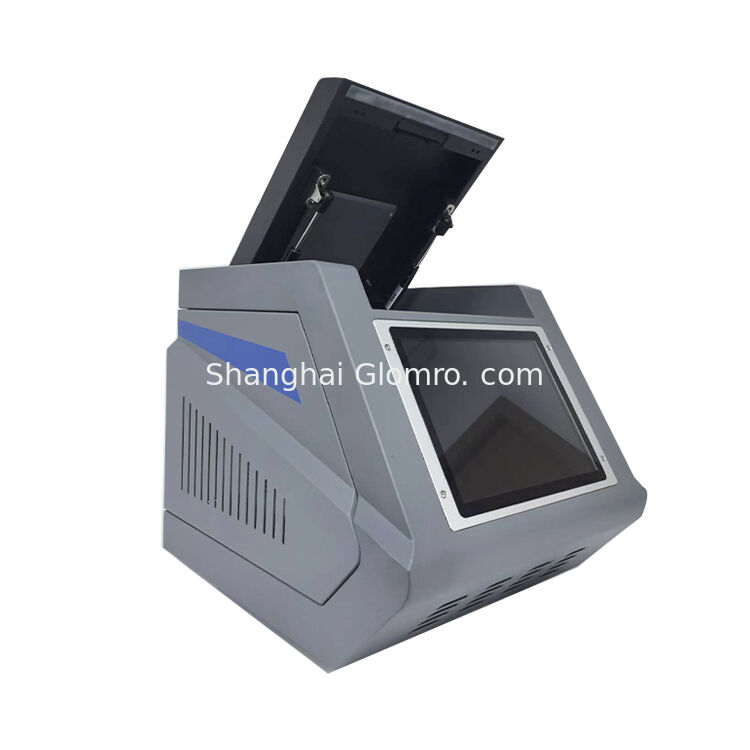

Gold Tester
X-ray Fluorescence (XRF) Spectrometer is a precision testing instrument integrating cutting-edge spectral analysis technology and industrial application design. Based on the principle of X-ray fluorescence analysis, it realizes rapid and accurate qualitative and quantitative detection of element composition in various substances. Integrating core technologies from multiple phases of national scientific and technological research and development as well as nearly 25 years of industry application experience, the instrument, relying on its high sensitivity, wide adaptability and safe and reliable performance, is widely used in electronic manufacturing, material metallurgy, environmental monitoring and other fields, providing authoritative data support for hazardous substance control and material composition analysis.
Supports switching of multiple functional modules such as multi-element analysis and coating thickness detection. The software can be upgraded for free. Equipped with a complete data management system, it supports spectrum comparison (domestically unique), tracking of supplier material changes, and customizable remote data management solutions. The report output format is flexible and diverse.
Technical Specifications
| Model |
BXT-EDS9800T |
BXT-EDS8800T |
BXT-EDS9800 |
BXT-EDS8800 |
BXT-EDS7700 |
| Analysis range |
ppm～99.99% |
| Measurement accuracy |
±0.01% |
±0.03% |
| Test form |
Solid, powder, liquid |
| Light tube voltage |
5KV～50KV |
| High-voltage power supply |
0～50KV |
| Light tube flow |
0uA～1000uA |
| Camera |
High-definition camera |
| Filter |
Multiple customizable switching options available |
| Detector |
SDD |
Si-PIN |
| Resolution |
135±5eV |
145±5eV |
/ |
| Multistage Analyzer |
KEYRAY-DMCP |
| Sample chamber dimensions(mm) |
310*270*90 |
310*270*80 |
310*270*90 |
310*270*80 |
310*270*90 |
| Test time |
3～60S |
| Measured elements |
From sodium (Na) to uranium (U), among 82 elements (excluding the light elements) |
| Analysis software |
KEYRAY-FP Qualitative and Quantitative Analysis Software |
| External dimensions(mm) |
480*440*368 |
460*390*360 |
480*440*368 |
460*390*360 |
450*400*390 |
| Weight |
36kg |
38kg |
36kg |
38kg |
36kg |
| Environmental temperature |
5～38℃ |
5～30℃ |
| Relative humidity |
15%～90% |
15%～85% |
| Power supply |
AC220V±5V,50/60Hz No high-power electromagnetic or vibration interference sources nearby |
| Model |
BXT-EDS6000T |
BXT-EDS5800PLUS |
BXT-EDS5800T |
BXT-EDS3900C |
BXT-RAY3000 |
| Analysis range |
ppm～99.99% |
0.01%～99.99% |
| Measurement accuracy |
0.05% |
±0.05% |
0.07% |
±0.1% |
| Test form |
Solid, powder, liquid |
| Light tube voltage |
5KV~50KV |
| High-voltage power supply |
0~50KV |
| Light tube flow |
0 uA~ 1000 UA |
| Camera |
High-definition camera |
| Detector |
Novel Si-PIN Detector |
Proportional Counter Detector |
Novel Si-PIN Detector |
Proportional Counter Detector |
| Multistage Analyzer |
KEYRAY-DMCP |
Digital multi-channel |
Multi-channel simulation |
| Sample chamber dimensions(mm) |
310*270*90 |
270 * 260 * 100 |
310* 270* 90 |
320 * 250 * 120 |
325*325*90 |
| Test time |
3~60S |
5~60S |
| Measured elements |
74 elements ranging from Potassium (K) to Uranium (U) (excluding light elements); 26 elements can be analyzed in a single run, including Gold (Au), Silver (Ag), Copper (Cu), Zinc (Zn), Nickel (Ni), Cadmium (Cd), Tin (Sn), Iron (Fe), Rhenium (Re), Tungsten (W), Ruthenium (Ru), Osmium (Os), Indium (In), Manganese (Mn), Rhodium (Rh), Platinum (Pt), Lead (Pb), Palladium (Pd), Cobalt (Co), Antimony (Sb), Chromium (Cr), Iridium (Ir), Germanium (Ge), Mercury (Hg), Titanium (Ti), and Molybdenum (Mo). |
Detect 24 types of metals: gold, silver, copper, zinc, nickel, cadmium, tin, iron, rhenium, tungsten, ruthenium, osmium, indium, manganese, rhodium, platinum, lead, palladium, cobalt, antimony, chromium, iridium, germanium, mercury (rhenium > 5%, tungsten > 5%, iridium > 5%) |
Gold(Au), silver(Ag), platinum(Pt), palladium(Pd), copper(Cu) |
| Analysis Software |
KEYRAY-FP Qualitative and Quantitative Analysis Software |
| External dimensions(mm) |
450*400*390 |
520 * 450 * 400 |
450 * 400 * 390 |
450 * 430 * 390 |
430*430*350 |
| Weight |
36kg |
38kg |
36kg |
36kg |
33kg |
| Environmental temperature |
5～30℃ |
5～38℃ |
| Relative humidity |
15%～85% |
15%～90% |
| Power supply |
AC220V±5V,50/60Hz No high-power electromagnetic or vibration interference sources nearby |
